Zero-Copy Graph Engine: Train Large GNNs Without OOM

ByJames McCallef
Developer laptop on a desk with an external NVMe SSD connected; overlay text reads “ZERO-COPY GRAPH ENGINE”.

If you’ve ever pointed PyG at ogbn-papers100M on a 16GB laptop, you already know the failure mode: the process allocates 20+ GB for the graph and feature matrix, then dies before the GPU sees a single mini-batch.

GraphZero’s pitch is that a zero-copy graph engine turns that “I need a 64GB box” problem into “I need a half-decent NVMe and sane access patterns.”

That’s the interesting part: the memory crisis isn’t physics, it’s architecture. And once you see how GraphZero works, it’s hard to un-see how wasteful most GNN input pipelines are.

TL;DR

  • GraphZero compiles graphs into on-disk CSR + columnar feature blobs, then mmaps them and exposes the raw pointers as zero-copy tensors via nanobind.
  • This doesn’t “make RAM bigger”; it trades RAM pressure for SSD throughput, OS page cache behavior, and access-pattern sanity.
  • The big shift: future large GNN work will be data‑engine first, not model‑first, but you need to sanity‑check benchmarks and know when mmap is the wrong tool.

The problem: why large GNN datasets OOM on consumer hardware

If you were building a naive GNN loader, you’d do exactly what most libraries do:

  1. Read edges into Python / PyTorch.
  2. Build a CSR or COO adjacency in RAM.
  3. Read the node features into a giant dense tensor.
  4. Hand those to your sampler.

On ogbn-papers100M, that means:

  • ~111M nodes
  • ~1.6B edges
  • Multi‑GB feature matrix

The GraphZero README claims PyG tries to allocate >24 GB just to be “ready”, which matches what you’d expect from holding:

  • Edge indices (two 64‑bit arrays of length 1.6B)
  • CSR pointers / indptr
  • Dtype‑inflated feature tensors
  • Python/object overhead during preprocessing

Nothing about GraphSAGE requires all of that to stay resident. But the default design is “parse all CSVs into RAM, then start training,” so the memory blow‑up is front‑loaded.

GraphZero’s core idea is: don’t fight that with bigger machines. Change what “loaded” means.

Zero-Copy Graph Engine: how GraphZero bypasses RAM with mmap and zero-copy tensors

If you were implementing GraphZero from scratch, you’d invert the usual order:

  1. One‑time compile step

    • Convert edges.csv into a compressed CSR .gl file: contiguous arrays for indptr + indices, tightly packed and alignment‑friendly.
    • Convert features into a columnar .gd blob: raw, C‑contiguous floats/ints in exactly the layout PyTorch expects.

    Now your “dataset” is just two big binary files on disk.

  2. Mount, don’t load

    • Call mmap / CreateFileMapping on those binaries.
    • Treat the returned address as if it were a giant in‑RAM array.
    • Use nanobind to wrap those raw pointers as NumPy / PyTorch tensors without copying.

    From Python, you see torch.Tensor objects. Underneath, their .data_ptr() is literally the memory‑mapped file.

  3. Let the OS decide what actually lives in RAM

    • When your training loop indexes into features[batch_nodes], the CPU touches specific addresses.
    • If those pages aren’t in memory, you get page faults; the kernel reads only those 4 KB (or 2 MB huge pages) from your NVMe into the page cache.
    • The rest of the “50 GB tensor” never materializes in RAM.

GraphZero also moves neighbor sampling into C++ with OpenMP. The sampler (batch_random_fanout) runs parallel over the CSR layout, releases the GIL, and issues reads that (if you’re lucky) hit hot OS‑cached pages.

The upshot: the zero-copy graph engine keeps Python from ever allocating tens of gigabytes of dataset memory. You’ve swapped “Python blows up at 24 GB allocation” for “kernel decides which parts of a 50 GB file are actually hot.”

The trade-offs: when zero-copy helps, and when SSDs and access patterns bite back

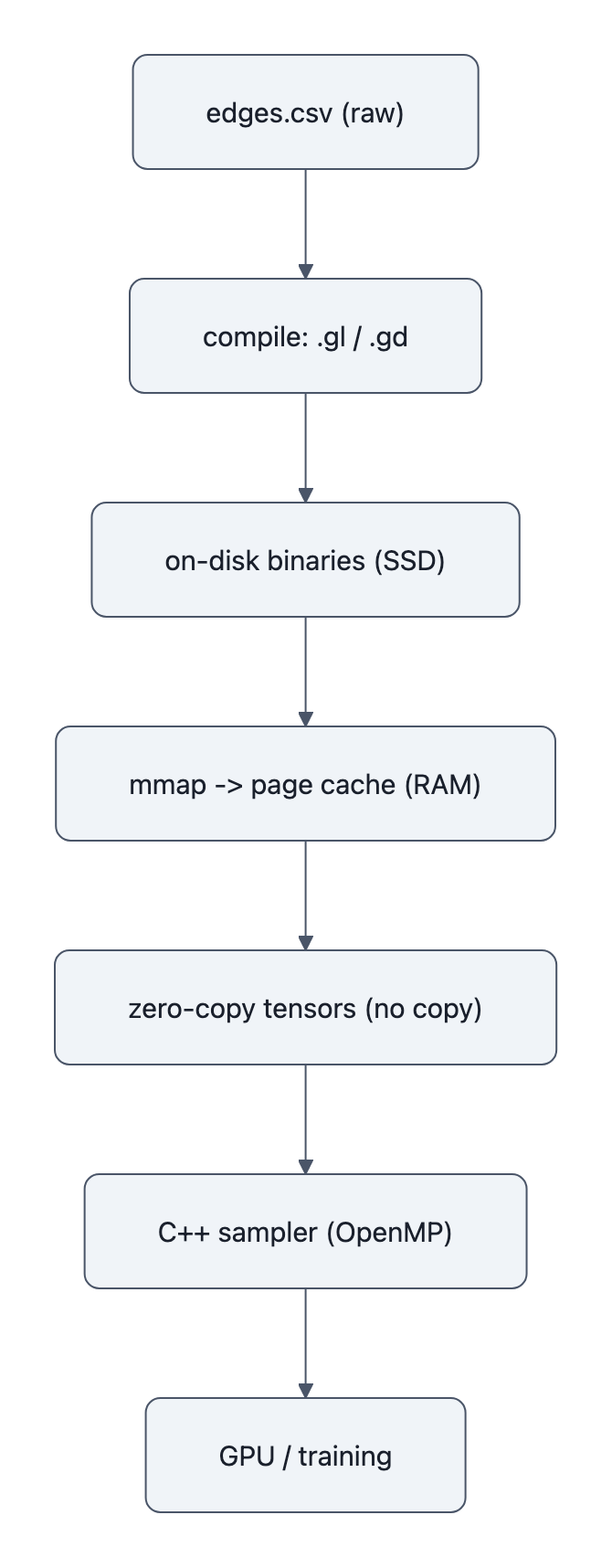

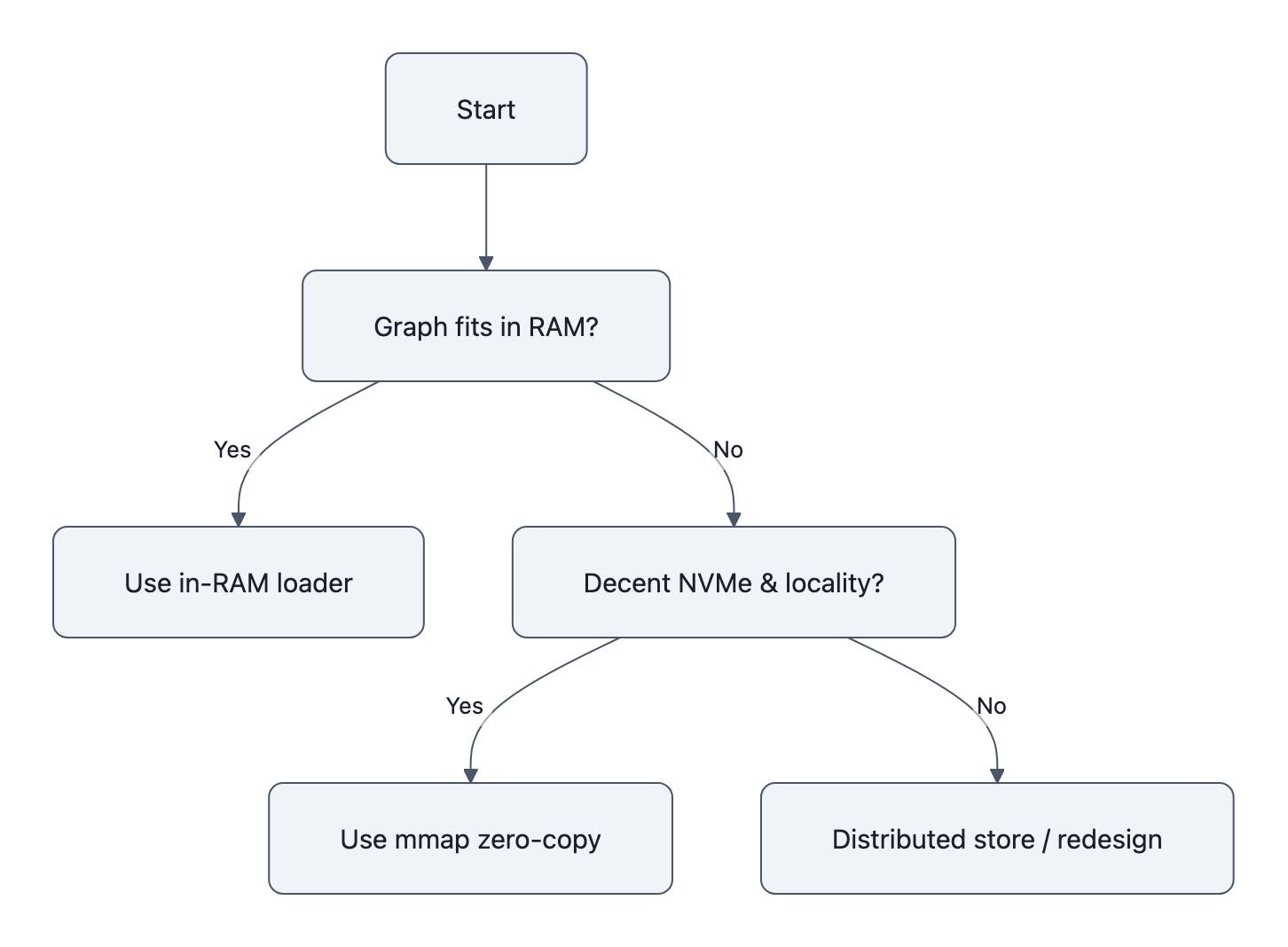

Flowchart showing data pipeline: CSV -> compiled on-disk binaries -> memory-mapped page cache -> zero-copy tensors -> sampler -> GPU. Nodes indicate where disk (SSD) vs RAM (page cache) are used.” /></figure> <figure class=Simple decision chart: if graph fits in RAM use in-RAM loader; if not and you have good NVMe locality, use mmap zero-copy; otherwise use distributed store or redesign access patterns.

This all sounds magical if you stop at “no OOM,” but it’s not free.

You’ve changed the bottleneck from capacity to throughput and locality:

  1. SSD bandwidth is your new ceiling

    • A mid‑range NVMe might do 3-5 GB/s sequential, but far less under heavy random IO.
    • If your sampling pattern touches scattered neighborhoods, each batch can trigger lots of tiny reads.
    • GraphZero claims it “saturates NVMe throughput” with OpenMP, that’s great, but on weaker disks you’ll just hit a wall sooner.
  2. Random access patterns can sabotage you

    • GNN neighbor sampling is not a simple sequential scan. It’s “hop K steps from these 10k seed nodes,” again and again.
    • If those seeds are uniformly random across a huge graph, you get noisy, cache‑unfriendly access.
    • OS page cache does some magic: if multiple samples hit nearby nodes, their pages stay hot. But if your sampler pattern is adversarial, you effectively downgrade to “GNN as random‑IO benchmark.”
  3. Correctness and safety footguns

    • Those torch.Tensors from the zero-copy graph engine are backed by mmap. If the underlying file is closed or unmapped before the tensor dies, you’re holding a dangling pointer.
    • Lifetime management lives in the C++/nanobind layer. If you copy/paste that pattern into your own project, it’s very easy to get subtle UB instead of a nice RuntimeError.
    • Writes are even trickier. GraphZero’s main story is read‑only features/topology. The moment you think “I’ll just mutate in place,” you’re in OS‑cache coherency land.
  4. “0 bytes of Python RAM” hides real usage

    • The project likes to say “Python allocates literally 0 bytes for the dataset.” True in a narrow sense.
    • But the OS page cache can still use many GB. top might show “only” a few GB for your process, while free -h tells you the kernel happily cached a big fraction of the graph.
    • That’s fine, that’s the point, just don’t confuse “Python RSS” with “actual memory pressure on the machine.”

So when is a mmap‑backed, zero-copy graph engine the right tool?

  • Right choice: single‑box experiments where:

    • Your graph is too big to fit comfortably in RAM,
    • You have a decent NVMe,
    • Your sampling pattern has at least some locality (or you can batch cleverly),
    • You don’t want to jump straight to a full distributed graph store.
  • Wrong choice: production settings where:

    • You’re already network‑bound on a remote feature store,
    • You need mutation / online updates,
    • Or your access pattern is so random that a local SSD still can’t keep GPUs fed.

At that point you’re back in GPU performance trade-offs territory: the GPU is only as fast as your slowest stage.

Why this changes how we benchmark and build GNN tooling

The interesting implication isn’t “GraphZero is faster than PyG.” It’s that once you accept a data‑engine first design, a zero-copy graph engine instead of “just Python loaders”, a bunch of our usual habits stop making sense.

Three concrete shifts:

  1. Benchmarks must say how data is stored and accessed

    “158 batches/s” is meaningless without:

    • Are features in RAM or mmap?
    • What disk model and filesystem?
    • What batch size, fanout, number of sampler workers?
    • Is the model compute‑bound or IO‑bound?

    When storage layout changes the outcome that much, “benchmark vs PyG” without those details is like timing CUDA kernels without saying which GPU you used.

  2. Tooling needs to be a data engine, not a wrapper

    A lot of ML tooling is “nice Python API on top of someone else’s storage story.” That’s exactly the wrapper vs. engine problem:

    • PyG, DGL, etc. mostly assume “your graph is in RAM.”
    • GraphZero bakes the storage strategy, on‑disk CSR, memory mapping, OpenMP sampling, into the core of the library.

    You can’t bolt a design like this on as a decorator. It is the system.

  3. Reproducibility now includes “can your laptop do that?”

    If you want to sanity‑check GraphZero’s “ogbn‑papers100M on a 16GB laptop” claims (and you should), a minimal checklist looks like:

    • Same dataset + conversion scripts from graphzero or the benchmark-graphzero repo.
    • Record:
      • CPU model, NVMe model, OS, filesystem.
      • Actual free -h before/after, process RSS, and disk throughput (iostat, perf).
    • Run their GraphSAGE example end‑to‑end. Verify:
      • Python RSS stays small.
      • No hidden torch.clone() or .to(device) explosions.
      • Throughput vs PyG/DGL under the same batch/fanout.

    If the numbers only hold on one very specific laptop with a hero NVMe and perfect alignment, that’s still cool, but it’s not a general solution to the “GNN memory bottleneck.”

Key Takeaways

  • A zero-copy graph engine like GraphZero doesn’t “compress RAM”; it pushes the problem into SSD throughput and OS page cache behavior using mmap and zero-copy tensors.
  • The big, non‑obvious shift is architectural: large‑scale GNN work becomes data‑engine first, with on‑disk CSR and columnar features as primary design choices, not afterthoughts.
  • Zero-copy shines for read‑heavy, single‑box training where the graph doesn’t fit in RAM, but access patterns and disk quality can still kill performance.
  • Benchmarks and papers need to specify storage layout, mapping strategy, and access patterns, not just “we used PyG vs GraphZero.”
  • If you prototype GNNs on modest hardware, the right question is no longer “can my laptop fit the dataset?” but “can my storage + data engine feed my sampler fast enough?”

Further Reading

The practical pattern here is simple: for big GNNs, treat your graph like a database, not a Python object. Once you start designing the storage engine first, your “impossible on a laptop” graphs get a lot less impossible.
